Kuwala kwa Stadium ya LED
Unique Waterproof Structure and Processing Technology,
Kutentha Kwakukulu Kwambiri Kutentha, Kutentha Kwambiri Kwambiri
ndi Zosalowa madzi, Zopanda fumbi.
Bwalo la LED lomwe limayatsa bwalo lamasewera pogwiritsa ntchito zida zamphamvu za LED Chip (3030/5050) gwero lowala, mpaka 90% ya ma lens opatsirana, kuwunikira kwa bwalo lamasewera, kugwiritsa ntchito bwino kwambiri, kupindika, kukana kukakamiza. , kukana kutentha, ntchito yotetezeka kwambiri.

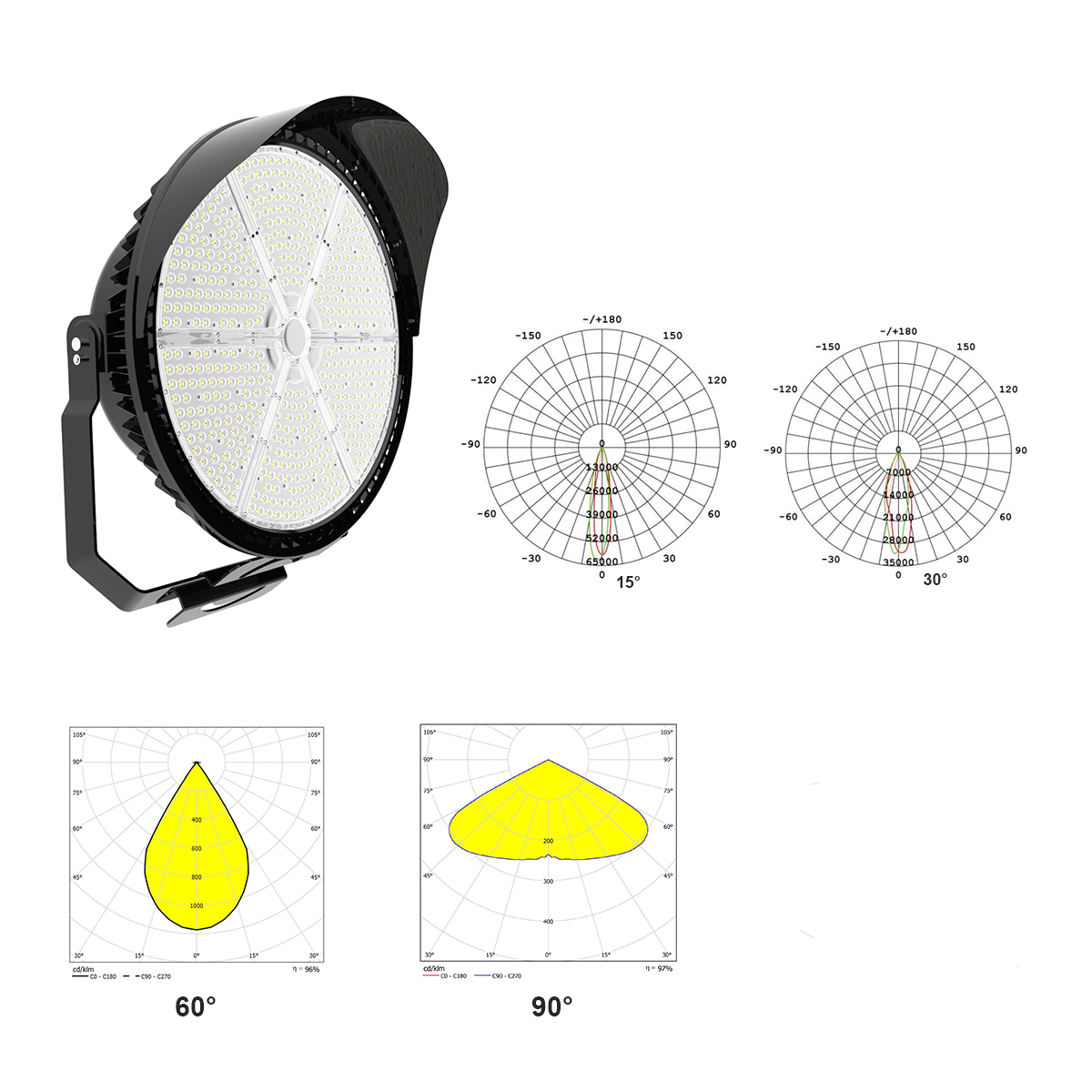

Katswiri wogawa kuwala
Mitundu yosiyanasiyana ya kugawa kowala imatha kusankhidwa: 15 °, 30 °, 60 °.

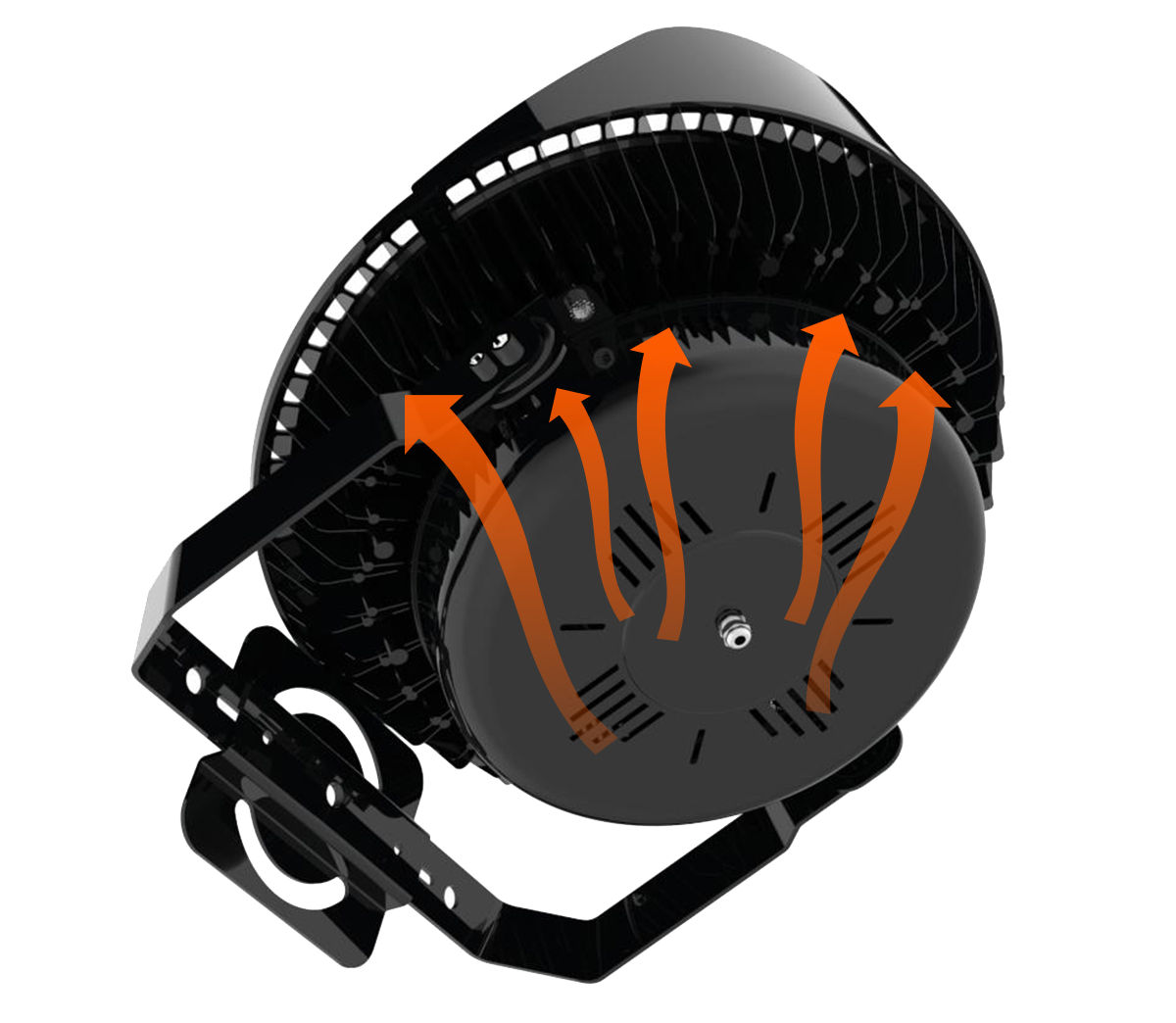

Kuunikira kwa bwalo lakunja la LED ndi chipolopolo choyatsira m'bwalo lamkati ndi chopangidwa ndi ADC12 aluminiyamu yowotcha, yobiriwira komanso yopanda kuipitsa, ilibe lead, mercury ndi zinthu zina zoipitsa.Large m'dera chipsepse mtundu kutentha dissipation, aliyense chipsepse anagawira ndi dzenje mabowo ang'onoang'ono ndi poyambira mapangidwe kuonjezera kutentha dissipation dera, kudzera mwapadera kapangidwe ka chipolopolo, pambuyo mawerengedwe zolimba kutentha dissipation ngodya, kotero kuti otaya mphepo. imatha kufulumizitsa kutentha kwa kutentha, kuchepetsa kukana kwa mphepo, kuchepetsa kupanikizika kwa bracket yoyika, kutentha kwabwino komanso kutsekemera madzi, fumbi.Pamwamba pa bwaloli kuunikira kwapamwamba kwambiri kumathandizidwa ndi kupopera mbewu mankhwalawa kwa UV-resistant komanso anti-corrosion powder, ndipo kuwala konseko kumafika muyeso wa IP65.

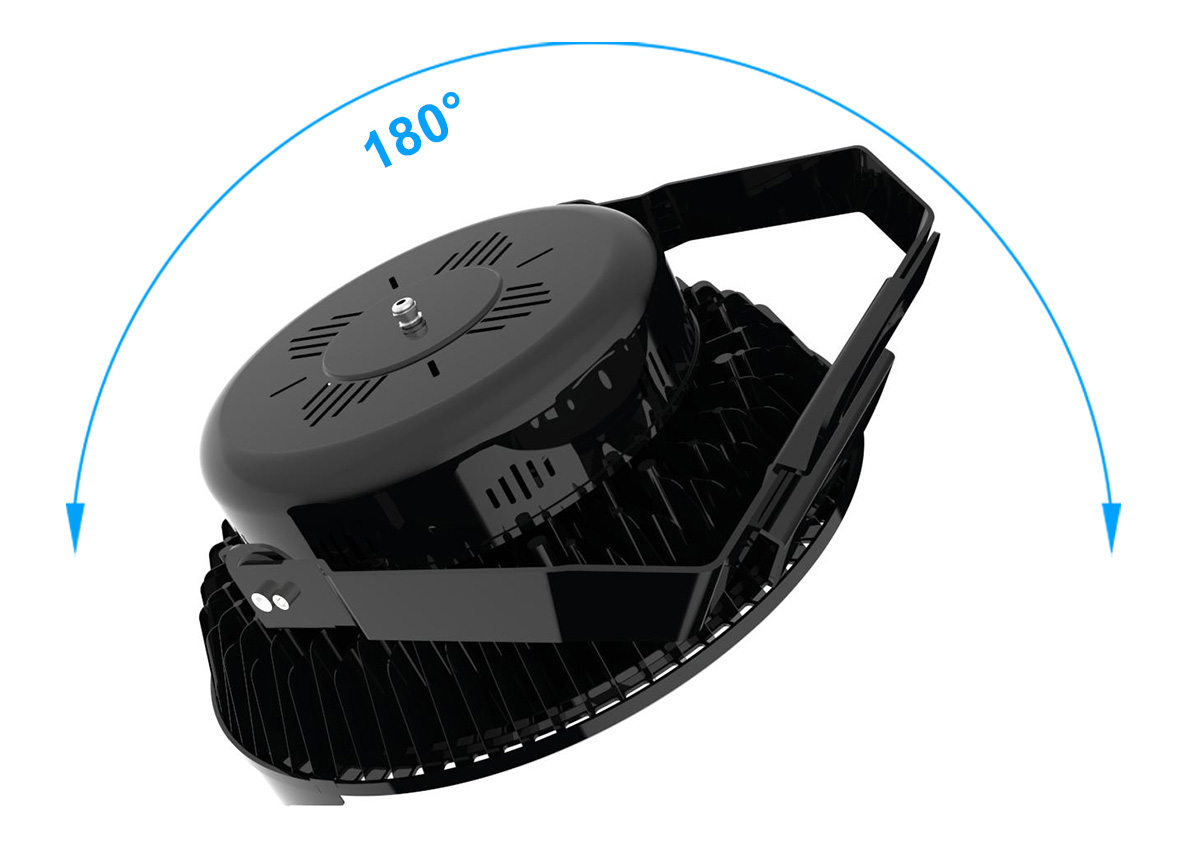

Angle chosinthika
Kuyika bulaketi 180 ° chosinthika, zomangira zokhazikika pogwiritsa ntchito zitsulo zosapanga dzimbiri za hexagonal zowonekera, zokhala ndi ndodo ziwiri zosasunthika, kusindikiza chivundikiro cha nkhope yabwino, kapangidwe kasayansi ndi koyenera, kolimba komanso kolimba, koyenera malo osiyanasiyana.
| Chitsanzo | Chithunzi cha PS-CL565-300W | Chithunzi cha PS-CL565-400W | Mtengo wa PS-CL565-800W | Chithunzi cha PS-CL565-1200W |
| Kulowetsa Mphamvu | 300W | 600W | 800W | 1200W |
| Kukula kwazinthu (mm) | Kukula kwa sinki ya kutentha Ф400*85 463*400*220 | Kukula kwa sinki ya kutentha Ф480*95 480*530*298 | Kukula kwa sinki ya kutentha Ф565*102 565*652*206 | Kukula kwa sinki ya kutentha Ф640*126 640*730*390 |
| Kuyika kwa Voltage | AC100-270V 50-60Hz | |||
| Mtundu wa LED | Lumileds / Cree | |||
| Magetsi | Meanwell | |||
| Kuchita bwino(lm/W)±5% | 150Lm/W | |||
| Kutulutsa kwa Lumen ± 5% | 45000 | 60000 | 120000 | 180000 |
| Beam Angle | 15°/30°/60° | |||
| CCT (K) | 2700-6500K | |||
| CRI | ≥80 | |||
| Mtengo wa IP | IP65 | |||
| PF | ≥0.95 | |||
| Kutentha kwa TA Ring | 30 ℃ | |||
| Gawo la IK | IK08 | |||
| TC Point Kutentha | 79 ℃ | |||
| Ntchito Temp. | -30 ℃—+45 ℃ | |||
| Lens Material | TEIJIN 1250Z | |||
| Zida Zanyumba | ADC12 Dia-casting Alumnium | |||
| Njira Yogawira Kuwala | Kugawa kwachiwiri kwa kuwala kwa LED + Lens | |||
| QTY(PCS)/katoni | 1 ma PC | 1 ma PC | 1 ma PC | 1 ma PC |
| NW(KG/katoni) | 8 | 13 | 17 | 29.5 |

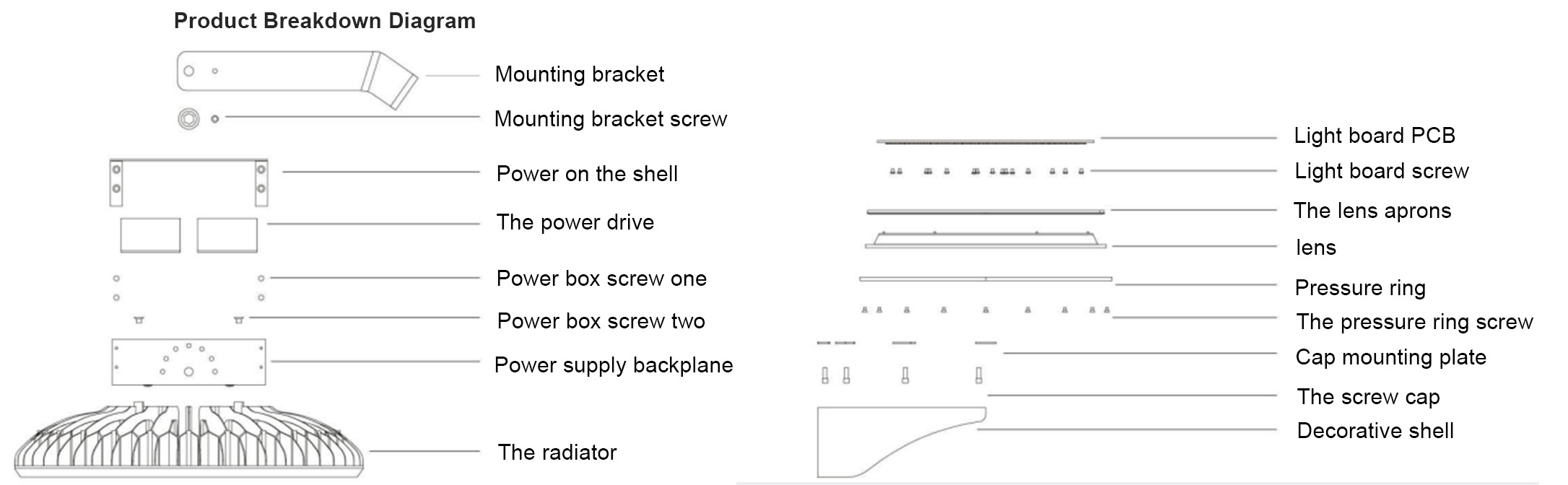

Mawonekedwe a LED Stadium Lights Adaphulika

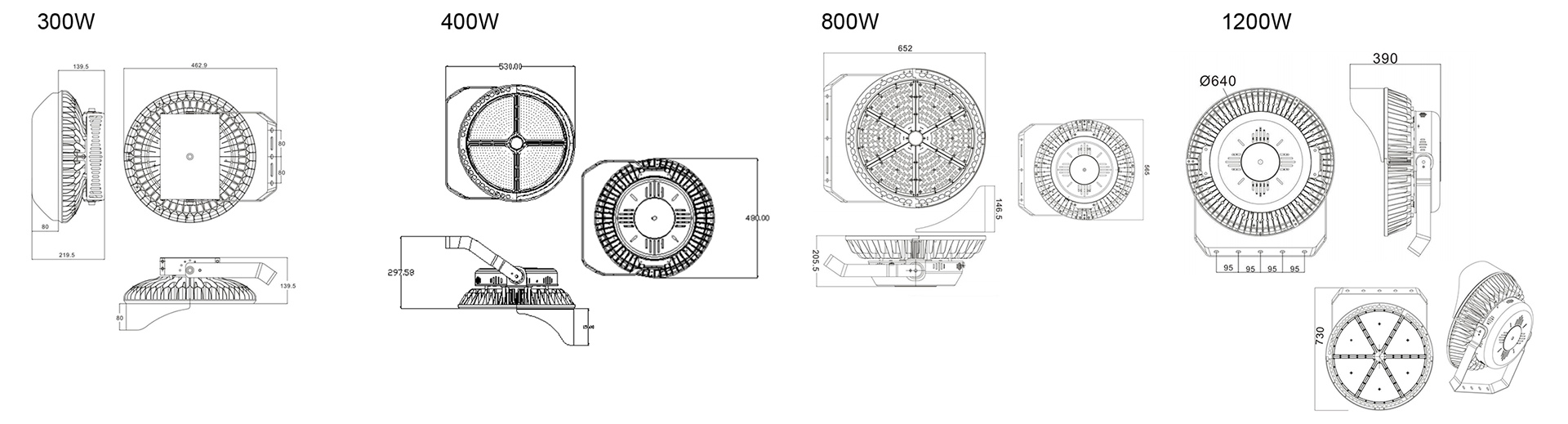

LED Stadium Light Product Kukula

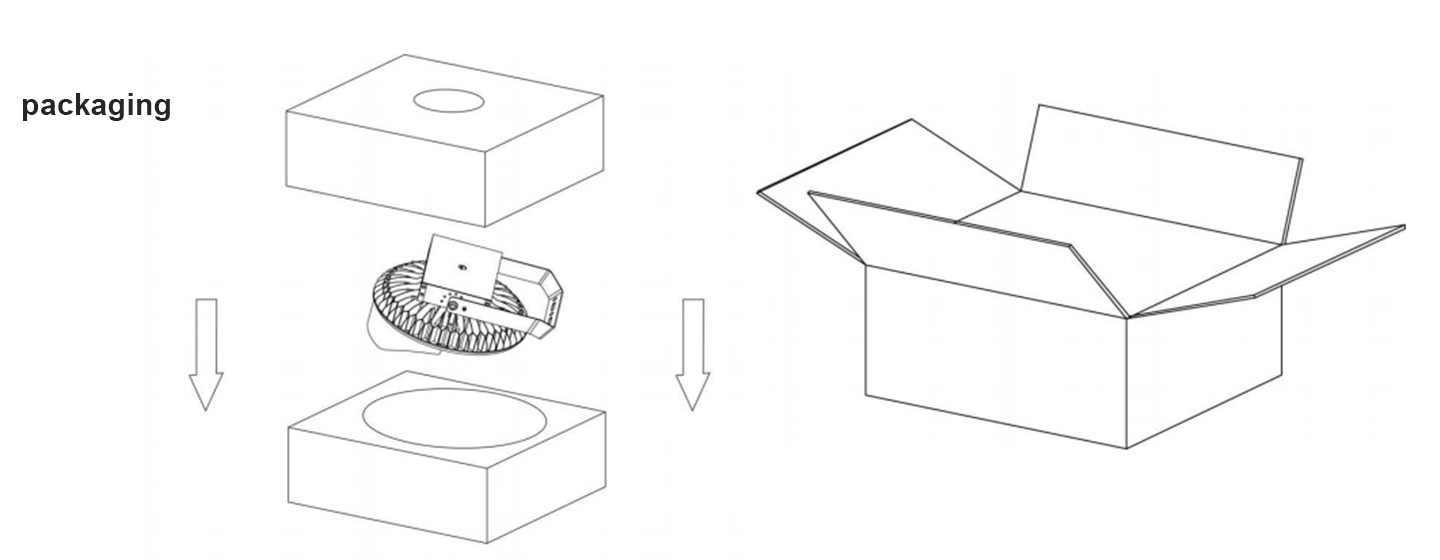

Phukusi la Sports Lighting LED & Kuyika

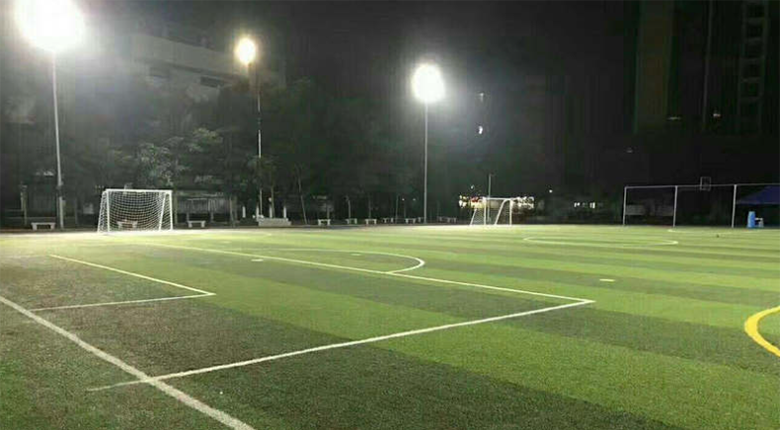

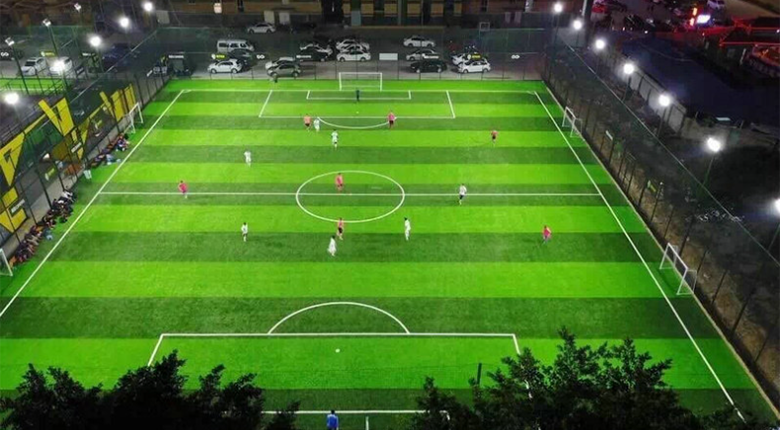

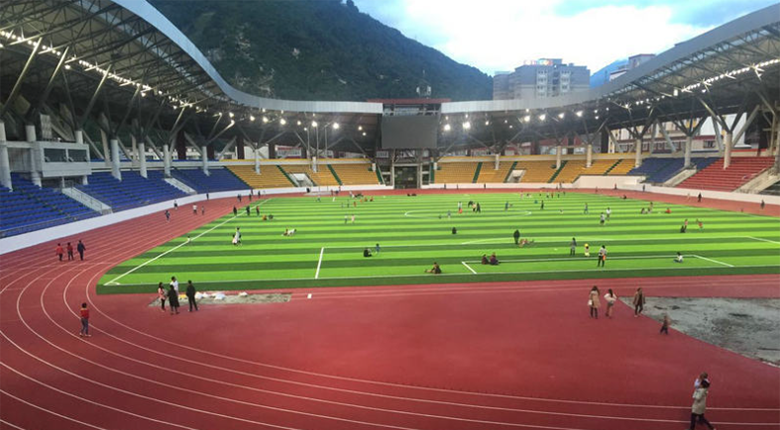

kapena magetsi a baseball stadium, basketball stadium magetsi, mabwalo a mpira, kuyatsa mabwalo a kricket, mabwalo amasewera, mabwalo a gofu, ma docks, mabwalo, malo oimikapo magalimoto akunja, magetsi okwera kwambiri, tunnel, misika, masitolo akuluakulu, masitolo akuluakulu, nyumba zosungiramo katundu, malo ochitira misonkhano ikuluikulu, ma workshop ndi malo ena owunikira mkati ndi kunja
